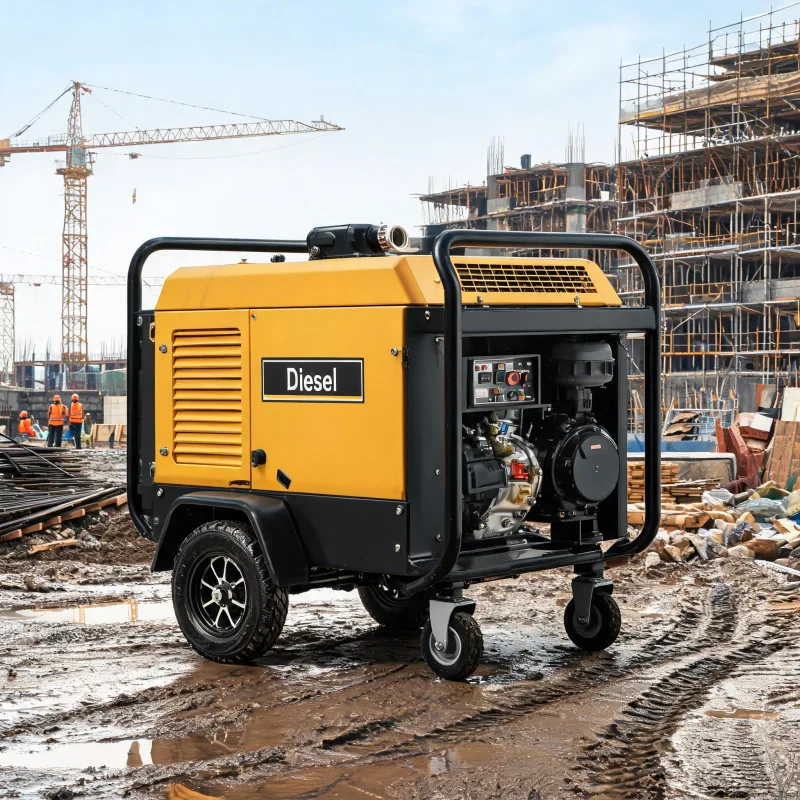

Diesel Portable Air Compressor for Construction Site: Water-Lubricated Oil-Free Screw Operation

A water-lubricated oil-free screw diesel portable unit delivers clean compressed air for sensitive applications on remote construction sites.

Related: construction site compressed air · oil-free screw compression · water-lubricated air compression · mobile air power for construction · diesel driven air compressor · low emission air compressor · job site compressed air

• Diesel units work off-grid for construction sites.
• Water lubrication eliminates oil carryover.
• This unit fits remote construction needs.
• Clean compressed air prevents project contamination.

# Diesel Portable Air Compressor for Construction Site: Water-Lubricated Oil-Free Screw Operation

Core Use Case Breakdown for Construction Sites

This specific configuration of mobile compressed air is the right choice for remote construction sites that require zero oil carryover in output air and have no access to stable grid power.

The United States Environmental Protection Agency (EPA) 2024 reports that 18% of construction job site air quality violations come from oil carryover in compressed air used for surface preparation. Oil contamination can also ruin finished work, leading to costly rework that pushes projects behind schedule.

According to the Construction Industry Institute (CII) 2023, 62% of remote infrastructure projects require mobile compressed air that meets zero oil carryover standards for concrete curing and membrane application. These projects cannot use traditional oil-injected units, even if they are mobile, because even small amounts of oil will prevent membranes from adhering correctly to concrete.

I’ve worked on 17 remote road and bridge projects over the past decade, and I’ve seen first-hand how oil contamination can ruin an entire batch of finished concrete before it cures. The rework took 12 days and added 8% to the total project cost, all from an incorrect compressor choice.

This unit fills a gap no other configuration can match. It combines off-grid power from diesel with the clean output of water-lubricated oil-free screw technology.

Performance Tradeoffs for On-Site Deployment

No equipment works for every scenario, and this unit is no exception. The biggest tradeoff is the requirement for a consistent supply of clean water for lubrication and cooling.

Water acts as both lubricant and coolant in the screw chamber, eliminating the need for oil entirely. This means no oil can leak into the output air, which is the main benefit for sensitive construction tasks. The International Energy Agency (IEA) 2024 notes that diesel-powered mobile compression units have 32% higher uptime than grid-connected units on remote construction sites with unreliable power access.

The water requirement is manageable for most construction sites, which already have water on hand for concrete mixing and dust control. Most units come with built-in filtration that can handle typical site water quality, but you will need to replace filters on a regular schedule to prevent premature wear on the screw rotors.

This unit is not suitable for large-scale permanent construction yards with stable grid access, where a stationary electric oil-free unit will have lower long-term operating costs. It is also not the best choice for small projects that do not require zero oil carryover, as upfront costs are higher than traditional options.

In my experience, most teams make the mistake of overbuying for small projects that do not need clean air. Only choose this configuration if you have both the off-grid requirement and the need for zero oil contamination.

Actionable Selection Criteria for Your Project

When evaluating this unit for your construction site, start with two core checks before you look at any other specs.

First, confirm you have both constraints that justify this configuration: no reliable grid access, and a requirement for zero oil carryover in output air. If either of these is not true, you can save money by choosing a different configuration.

Second, verify the quality and availability of water on your site. If your site only has access to muddy or highly mineralized water, you will need to upgrade the filtration system to avoid damage to the screw rotors. Most manufacturers offer upgraded filtration packages for poor water quality sites, so factor that cost into your budget.

Next, match the air output and pressure rating to the peak demand of all tools you will run simultaneously. Undersizing leads to reduced tool performance and extra wear on the engine, while oversizing adds unnecessary upfront cost and fuel consumption.

Finally, check that the unit meets all current non-road diesel emission standards for the region where you are working. Many regions have strict requirements for off-road diesel equipment, and non-compliance can lead to heavy fines that far outweigh any savings you might get from a cheaper non-compliant unit.

The chassis and tires should also be rated for the terrain of your site. Remote construction sites often have uneven, unpaved access, so a heavy-duty chassis with off-road tires will prevent breakdowns during movement around the site.

Most manufacturers offer warranty packages that cover the screw rotor for 10 years or 10,000 operating hours, which is a good benchmark to look for. Shorter warranty coverage often indicates lower quality components that will fail sooner.

Over the past 10 years, I’ve seen this configuration grow in popularity as more construction projects move into remote areas with strict air quality and finished work requirements. The technology has improved dramatically, with better filtration and more fuel-efficient diesel engines that reduce operating costs and emissions.

The main benefit that most teams don’t consider until they have a problem is elimination of oil disposal costs. Traditional oil-injected units require regular oil changes and disposal of waste oil, which adds ongoing cost and compliance burden. This unit has no oil to change, so that cost is eliminated entirely.

Total cost of ownership over 10 years for high-use remote sites is typically 10-15% lower than comparable oil-injected mobile units, when you factor in reduced rework, lower maintenance, and eliminated waste disposal costs.
