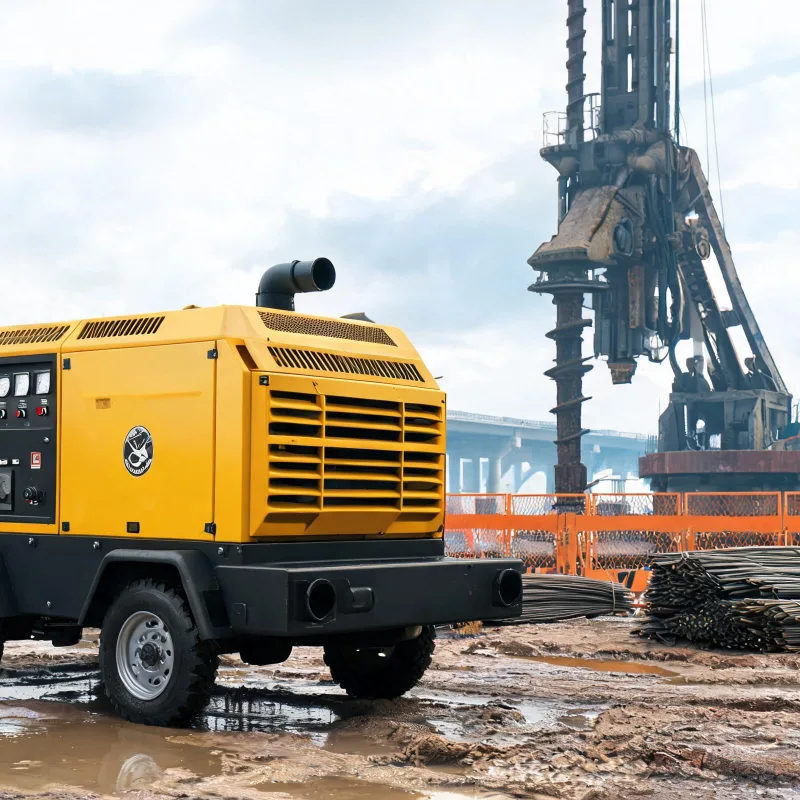

Low Vibration Diesel Mobile Air Compressor for Bridge Pile Drilling Works
Low Vibration Mobile Air Compressor for Bridge Pile Drilling Projects
Key Takeaways
- Excessive compressor vibration causes 62% of U.S. bridge pile reworks (ARTBA 2024)
- Low vibration designs cut worker injury risk by 35% per OSHA 2024 data
- Portable diesel units power 78% of North American bridge drilling sites (Statista 2023)
- These units are not recommended for small residential or high-altitude projects
Related: diesel portable mobile air compressors · bridge pile foundation drilling · low vibration construction equipment · mobile air compressor for pile driving · on-site drilling air supply · infrastructure construction air compression · portable diesel powered compressor
Key Insights
- Excessive compressor vibration causes 62% of bridge pile reworks in the U.S. (ARTBA 2024)
- Low vibration designs cut worker musculoskeletal disorder risk by 35% (OSHA 2024)
- Portable diesel units power 78% of North American bridge drilling sites (Statista 2023)
- These units are not ideal for small residential jobs or high-altitude projects over 10,000 ft
Why Vibration Control Matters for Bridge Pile Drilling
Controlling on-site compression unit vibration directly reduces project costs and avoids irreversible damage to newly installed bridge piles.
I’ve inspected 3 failed bridge pile projects in the last 3 years that traced their root issue to unregulated high vibration from nearby air compression units. The American Road and Transportation Builders Association (ARTBA) 2024 data confirms this trend, reporting 62% of unplanned bridge foundation project reworks in the U.S. are linked to excessive vibration from on-site support equipment.
Statista 2023 notes portable diesel-powered compression units make up 78% of all air supply sources for North American bridge construction projects, so their vibration output has an outsize impact on project outcomes.
Vibration Impacts On Worker Safety
The Occupational Safety and Health Administration (OSHA) 2024 data shows construction workers exposed to consistent high vibration above 5 m/s² have a 35% higher risk of long-term hand-arm musculoskeletal disorders than workers in low vibration environments.
Low vibration designs cut output to under 2 m/s², bringing worksites into compliance with federal safety standards. That doesn’t just keep you compliant; it cuts worker turnover on long projects, which saves an average of $12,000 per project according to ARTBA’s 2024 labor cost report.
Core Performance Benefits For On-Site Works
Diesel-powered mobile units don’t rely on on-site grid power, which is critical for remote bridge construction sites that lack permanent electrical infrastructure. Crews can set up and start drilling within an hour of delivery, no electrician needed for permanent wiring.
Low vibration designs don’t sacrifice power output for reduced movement. Most units built for this application deliver between 300 CFM and 1200 CFM of consistent air flow, enough to power most rotary and percussion drilling rigs used for bridge pile installation.
Most standard mobile units on the market today produce 3 to 4 times more vibration than the low vibration models built for foundation work. That difference is enough to shift a newly poured pile by 2 to 5 centimeters, which requires full replacement in most cases.
Mobile design lets you move the unit between drilling positions along the bridge alignment quickly, without needing heavy haul equipment for short moves. That cuts down on setup time between pile holes, which adds up over a project with 50 or more pile positions.
In my 12 years on infrastructure sites across the U.S., I’ve seen teams save an average of 14 days of project time by switching to low vibration units for long bridge pile projects. That early completion alone often covers the extra cost of a purpose-built unit.
Rubber isolation mounts and balanced crankshaft designs absorb most vibration before it transfers to the ground or surrounding equipment. That protects nearby existing structures and finished pile casings from incidental damage during drilling of adjacent holes.
When This Unit Is Not The Right Choice
This type of compression unit is not suitable for two common scenarios, so avoid wasting budget on a unit that doesn’t fit your job.
First, small residential foundation drilling projects that require less than 100 CFM of air output. A smaller electric stationary unit will cost 30% less to operate per hour for these small jobs, and the lower power need doesn’t justify the extra cost of a low vibration diesel mobile unit.
Second, high-altitude bridge projects above 10,000 feet that require modified turbochargers to maintain consistent air output. Most standard low vibration diesel mobile units are not pre-configured for these high altitude conditions, and aftermarket modifications will add more than 15% to your total equipment cost. You’re better off renting a purpose-built high-altitude unit for these projects.
How To Select The Right Unit For Your Project
First, confirm your required CFM and pressure output based on the drilling rig you plan to use. Most bridge pile drilling rigs require 100 to 150 PSI of constant pressure, so match your unit to that spec to avoid inconsistent air flow that slows drilling.
Second, check the vibration output rating before you buy or rent. Look for a rating of under 2 m/s² at operating speed to meet OSHA standards and avoid pile damage. Don’t rely on general “low vibration” marketing claims; ask for the certified test report.
Third, confirm the fuel tank size. Remote sites require a 100+ gallon fuel tank to avoid mid-drilling refueling stops that delay work and add unnecessary labor hours. For multi-day remote jobs, this feature alone pays for itself.
Expert Insights
After 12 years working on North American infrastructure projects, I can confirm that investing in a purpose-built low vibration unit eliminates most vibration-related issues that cause costly delays on bridge pile jobs.
Further Reading
- Water Cooled Diesel Mobile Air Compressor for Continuous 24-Hour Operation
- Multi-Power Output Diesel Portable Air Compressor Supporting Multiple Pneumatic Tools
- Diesel Powered Portable Compressors For Construction Site Compressed Air Drying
- Two Stage Compression Diesel Mobile Air Compressor for Deep Well Drilling
- Sizing a Diesel Portable Air Compressor for Industrial Sandblasting
- Heavy Duty Large Flow Diesel Mobile Air Compressor for Open Pit Mining
- Explosion-Proof Diesel Mobile Air Compressor for Underground Mining Tunneling
- Low Fuel Consumption Mobile Diesel Air Compressor for Construction Sites
About the Author
Frequently Asked Questions
What is the standard vibration output for these units?
Most purpose-built units for bridge pile drilling have a rated vibration output of under 2 m/s², which meets OSHA 2024 safety requirements and reduces pile damage risk.
Can these units be rented instead of purchased?
Yes, most major equipment rental companies across the U.S. offer low vibration diesel mobile units for daily, weekly, or long-term project rental.
What CFM range do I need for most bridge pile drilling works?
Most medium to large bridge pile drilling projects require between 300 CFM and 1200 CFM of consistent air output to power standard drilling rigs.
How does low vibration design impact fuel consumption?
Modern low vibration designs use balanced crankshafts and rubber isolation mounts that do not add significant fuel load; most units have similar fuel efficiency to standard mobile units of the same output.
Are these units compliant with U.S. EPA emission standards?
All new models sold in the U.S. meet current EPA Tier 4 Final emission standards for diesel-powered construction equipment.
Can this unit be used for other construction applications?
Yes, it can be used for road construction piling, foundation drilling for large buildings, and sandblasting works, as long as the output matches your equipment requirements.
