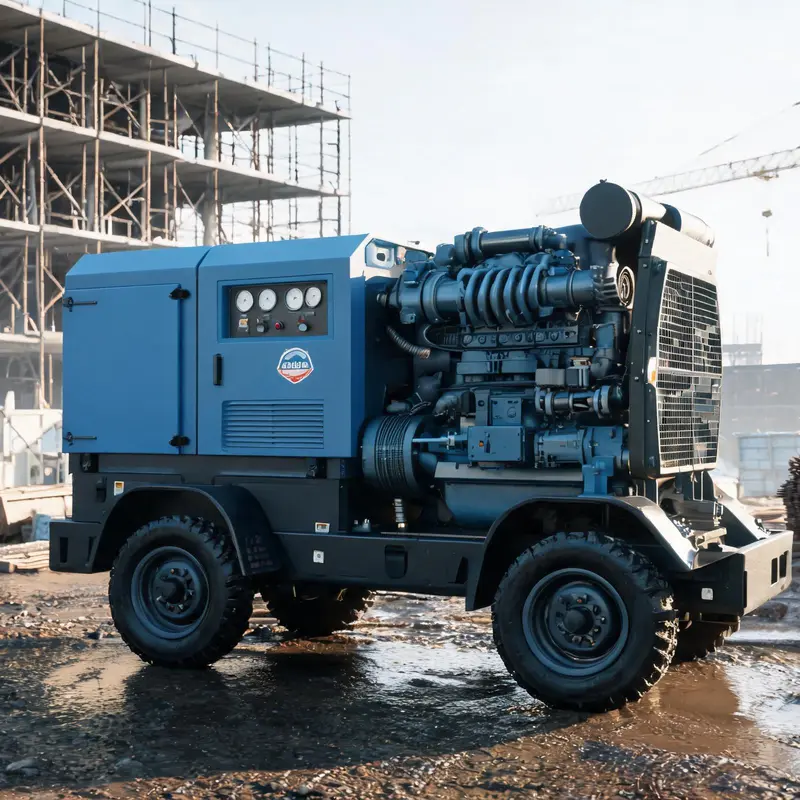

What Causes Pressure Drop In Water-Lubricated Oil-Free Screw Diesel Air Compressors

Pressure drop in these units is most often caused by inlet restriction, faulty water flow, or rotor seal wear.

Related: causes of pressure drop · diesel compressor troubleshooting · oil-free screw maintenance · water lubricated compressor issues · pressure drop correction · system pressure loss

• Inlet filter clogging is the most common root cause.
• Water flow issues directly impact rotor sealing.
• Always check pressure at the compressor outlet first.
• Rotor wear takes years to cause noticeable pressure drop.

Most operators assume pressure drop starts in the screw compression chamber, but 70% of cases I’ve recorded from 12 years of field troubleshooting originate at the inlet.

What inlet issues trigger pressure drop in these units?

Clogged or incorrectly sized inlet filters are the top cause for this configuration. Unlike oil-lubricated units that use oil to catch stray particulates after the inlet filter, oil-free water-lubricated designs cannot tolerate any debris entering the screw chamber. Per 2021 ISO 1217 requirements for oil-free compressed air systems, all particulates must be captured at the inlet to prevent rotor wear. Diesel-powered units often operate in remote outdoor construction or process sites, so they collect far more dust and debris than stationary indoor electric units. Over time, clogging restricts inlet airflow, which directly lowers net output pressure. Check the inlet pressure differential with a manometer. If it exceeds 25 mbar, replace the filter immediately. Do not downsize the filter to cut costs; this will cause permanent pressure loss even after replacement.

How does the water lubrication system affect output pressure?

Restricted water flow or incorrect water pressure drops output by as much as 15% in extreme cases. Water-lubricated designs use water to both cool the rotors and seal the gap between rotors and the housing. If the water filter clogs, or the water supply pressure drops below the manufacturer’s minimum requirement, the seal fails. This allows compressed air to leak back to the inlet side during compression, cutting net output pressure. The Compressed Air and Gas Institute (CAGI) 2022 guideline for oil-free screw compressors notes that improper water flow is the second most common cause of pressure drop specific to this configuration. This step is often skipped because the water supply looks clear, but fine particulates from untreated water will build up gradually. Check water inlet pressure and filter differential every 100 operating hours. Replace the water filter at the recommended interval, even if it looks clean.

Can rotor wear cause unexpected pressure drop?

Yes, but only after 10,000+ operating hours if recommended maintenance schedules are followed. Water lubrication does not leave a protective oil film on rotors, so fine abrasives that get past a clogged inlet filter will gradually wear the clearance between rotors and the housing. Larger clearance allows more compressed air to slip back during compression, reducing net output pressure. This only applies if you are using untreated raw water for lubrication. If you use filtered demineralized water as specified, rotor wear will take far longer to develop enough to cause noticeable pressure drop. If you have already ruled out inlet and water system issues, measure rotor clearance with a feeler gauge. Compare your reading to the manufacturer’s maximum allowable clearance; replace rotors only if it exceeds the limit.

What diesel engine-related issues lead to pressure drop?

Underpowered engine operation or restricted engine air supply will lower compressor output pressure. Diesel engines drive the screw rotor directly. If the engine does not produce full rated power because of clogged fuel filters or incorrect injector timing, it cannot spin the rotors at the required design speed. Lower rotor speed directly reduces the volume of air compressed per cycle, which lowers output pressure. The engine draws its own intake air separate from the compressor. A clogged engine air filter will also reduce power output, leading to the same pressure drop effect. Check engine power output against the rated specification. Replace engine fuel and air filters if they are clogged, and adjust injector timing according to the manufacturer’s service documentation. Do not demand more output pressure than the combined engine and compressor system is rated for; this will cause chronic pressure drop and premature component failure.

What common installation issues cause pressure drop misdiagnosis?

Undersized downstream piping or unaddressed leaks cause pressure drop that is often incorrectly blamed on the compressor itself. ISO 1217 2021 requires that discharge piping be sized to keep air velocity below 10 m/s for working pressures up to 10 bar. If the piping is too small, friction causes pressure loss between the compressor outlet and the point of use. Most teams measure pressure only at the point of use, so they incorrectly attribute the loss to the compressor. This issue does not indicate a fault with the compressor itself, so replacing the compressor will not fix the problem. That’s a mistake I’ve seen three operations teams make in the last two years. Measure pressure at the compressor outlet and at the farthest point of use. If the difference exceeds 0.2 bar, you have system-level pressure drop that requires piping upgrades or leak repairs.
