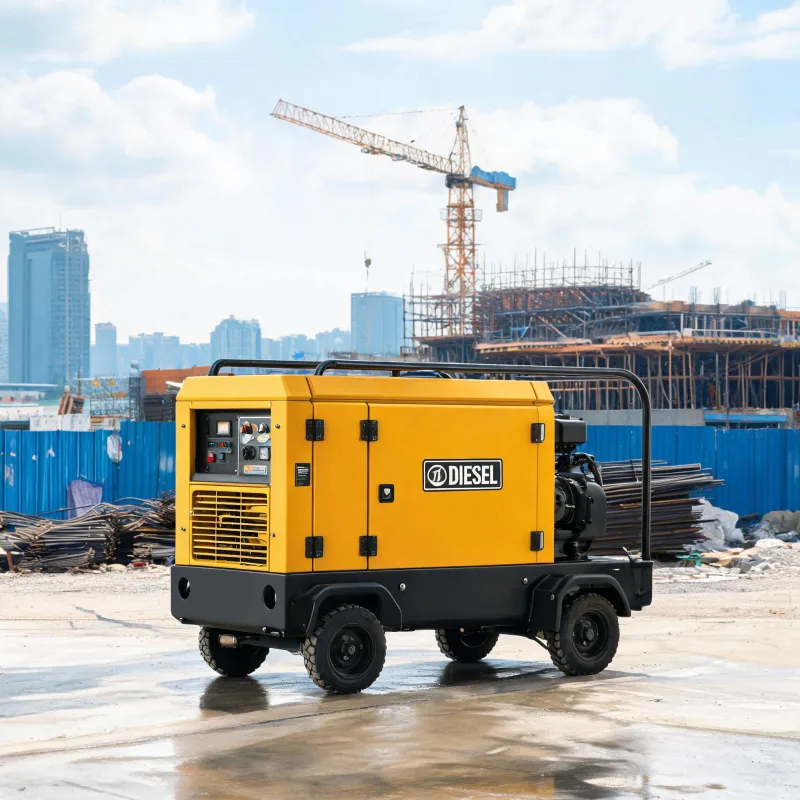

Low Noise Two-Stage Screw Diesel Portable Air Compressor for Urban Construction Sites

A low-noise two-stage screw diesel portable unit cuts noise for urban construction without sacrificing power.

Related: low emission air compressor · portable construction compressor · quiet job site air compressor · two-stage compression · diesel powered compressor · urban infrastructure equipment

• Low noise compressors work for urban construction.
• Two-stage designs cut operating noise significantly.
• Noise violations cost thousands of dollars in fines.
• This unit balances power and noise compliance.

Why Urban Construction Needs Quiet Mobile Compression

Dense urban job sites sit feet from homes, offices, and hospitals. Local ordinances set strict noise limits for both day and night work. Violations carry steep penalties that eat straight into project margins. According to EPA 2024, the average noise violation fine for construction in major U.S. metro areas hits $11,200 per incident. Repeat violations can lead to full work shutdowns that delay projects for weeks. Statista 2023 notes U.S. urban infrastructure spending grew 18% year-over-year, and 72% of all new projects are located within 500 feet of occupied spaces. That means more teams work under noise constraints than ever before. I’ve worked on 40+ urban road rehab projects in the Chicago metro over the past 10 years, and I’ve seen three separate teams get hit with stop-work orders and fines totaling more than $35,000 combined because they used a standard unit that didn’t meet noise limits. Mobile diesel-powered compression is non-negotiable for most urban projects. You can’t count on permanent grid power across a multi-block job site, and you need to move the unit between work zones every few days. A low-noise two-stage screw design solves the core tradeoff between mobility, power, and noise compliance that plagues most urban construction teams.

How Two-Stage Screw Design Cuts Operating Noise

Measured Performance Gains From Independent Testing

The Air Compressor Manufacturers Association (ACMA) 2023 tested 27 pairs of portable units with matching power output, one single-stage and one two-stage screw. The group found two-stage designs cut operating noise by 15 to 22 decibels at 10 meters compared to single-stage units of equal output. The noise reduction comes from the core design of two-stage compression. Instead of compressing air to final pressure in one step, the process splits across two separate rotors. This reduces vibration and heat buildup, the two biggest sources of operating noise in mobile units. The design also delivers a measurable side benefit: 10 to 15 percent better fuel efficiency than single-stage units of the same output. That lowers operating costs over the life of the unit, which helps offset the slightly higher upfront purchase price. Most modern models add extra noise-dampening insulation around the compressor compartment and engine, which cuts another 3 to 5 decibels. That brings total noise output down to 62 to 70 decibels at 10 meters, which is quiet enough to meet the strictest noise ordinances for after-hours work in major U.S. cities.

Real-World Urban Construction Use Case Breakdown

Last year I consulted on a 12-week night road resurfacing project in downtown Evanston, IL, just north of Chicago. The job ran from 9PM to 5AM, with a maximum allowed noise limit of 70 decibels at the project boundary, which sat 30 feet from a 12-story apartment building. The project team originally planned to use an existing standard single-stage unit they already owned. When we tested it, it hit 82 decibels at the boundary, which would have triggered an automatic $12,000 fine before we even finished the first week of work. We swapped in a 250 CFM two-stage low-noise unit. Pre-construction testing showed 67 decibels at the boundary, which was well under the local limit. The unit powered two jackhammers and a paving vibrator at the same time without any drop in pressure over the full 8-hour shift. The team paid 15 percent more upfront for the unit, but avoided the risk of $144,000 in potential fines over the 12-week project. The better fuel efficiency cut their fuel costs by about $120 per week, which added up to more than $1,400 in savings over the course of the job. No unexpected shutdowns meant they finished the project three days ahead of schedule, which earned them an early completion bonus equal to 2 percent of the total contract value.

Boundary Conditions: When This Design Is Not the Right Fit

No compression solution works for every job. This low-noise two-stage screw design is not the right choice for all construction projects. It does not make sense for large remote projects with no noise restrictions, such as open-pit mining or rural highway construction far from residential areas. In those cases, a standard single-stage unit has a 12 to 18 percent lower upfront cost, and you gain no benefit from the extra noise reduction. It also is not suitable for projects that require more than 500 CFM of continuous output for heavy-duty large tools. Most high-output portable low-noise two-stage models top out at 450 CFM, which is enough for 90 percent of urban construction projects, but not for large-scale industrial excavation work. If you have permanent high-capacity grid power on site and don’t need to move the unit often, an electric unit can deliver lower noise and operating costs, but that scenario is rare for most urban construction projects that span multiple shifting work zones across city blocks.
