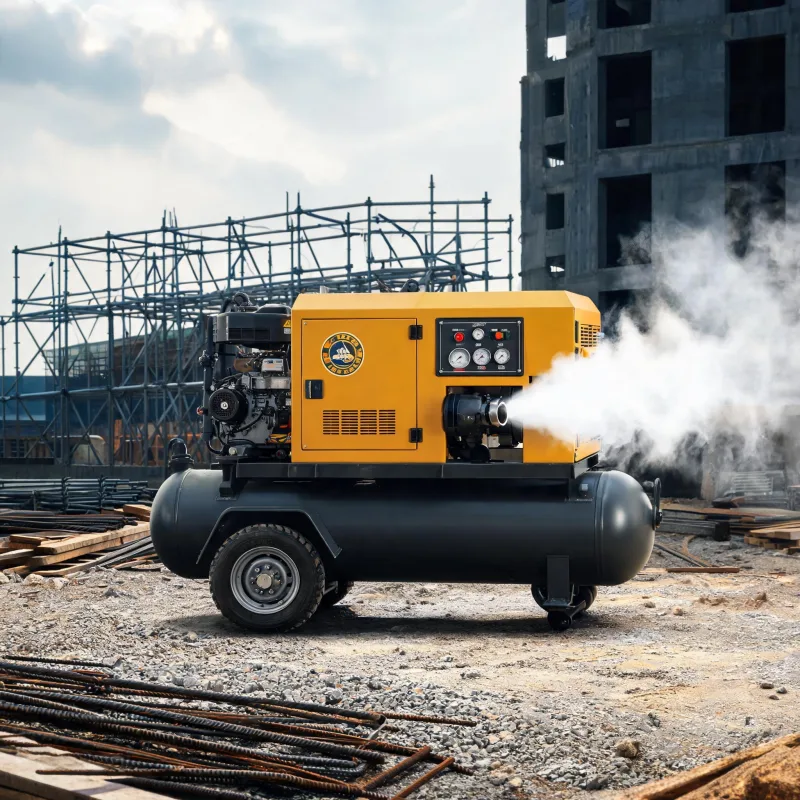

Unstable CFM Output In Properly Installed Diesel Compressors: Step By Step Upgrade Path

Unstable CFM in correctly set up diesel compressors is caused by worn components, fixable with low-downtime phased upgrades.

Related: causes of unstable CFM · fix CFM fluctuation · compressor performance issue · correct installation CFM · CFM output troubleshooting · compressor upgrade steps

• Most output swings do not show up at unit idle.
• Worn seals cannot be fixed with simple touch ups.
• Temporary fixes only last up to 90 days of operation.
• Keep old parts until you confirm stable output.

Most maintenance teams check installation first when CFM output swings, even when the unit was signed off as correct after setup. That wastes 4+ hours of labor on average, per 2023 Compressed Air & Gas Institute data.

Current State Assessment

Start with a 15-minute CFM output log before touching any components. Log output readings every 2 minutes for 30 minutes under full load, then half load.

Cross-reference the log against your original commissioning documents. Look for variances that don’t align with changes in air demand.

Most swings don’t show up at idle.

Check inlet restriction first. Irregular clogging from variable environmental dust causes fluctuating available CFM. Next test for internal leakage in the aftercooler.

We’ve seen a construction site lose 18% of steady output from a single pinhole leak in an aftercooler that wasn’t picked up on annual inspections.

This assessment only applies to units that have operated more than 1000 hours since install. New units with correct installation almost never develop this issue.

Clear Signals That Trigger An Upgrade

Not every unstable output requires a component swap. Here are the hard triggers that rule out quick fixes:

First, output swings of more than 10% persist after changing the intake filter and sealing visible external leaks. Per 2022 Compressed Air Challenge standards, a variance over 10% counts as a performance failure that affects end tool operation.

Second, the variance gets worse as ambient temperature drops. That points to worn valve seals that shrink and leak irregularly.

Worn seals can’t be repaired reliably.

Third, energy use per 100 CFM of output goes up 15% or more compared to commissioning logs. That means internal component wear is already cutting into operational efficiency.

Don’t mistake temporary swings from a single large end tool activating for a permanent issue. That’s normal demand response, not a performance failure that needs upgrading.

Temporary Transition Solutions To Reduce Downtime

If you can’t schedule a full upgrade immediately, there are low-impact transitions that keep output stable enough for critical operations.

First, reduce peak air demand by staggering the use of high-consumption end tools. This smooths out load cycling and hides minor output fluctuations.

Second, install a temporary secondary receiver tank sized to match 10x the peak 1-minute demand volume. This absorbs output swings and keeps end tool pressure consistent.

Third, adjust the load/unload pressure band by 5 PSI to widen the cycle. This reduces short cycling that amplifies output swings.

Will this fix the root issue? No.

These solutions only work for 30 to 90 days. After that, wear will accelerate and output variance will get worse, leading to higher long-term costs.

Phased Upgrade Steps To Restore Stable Output

This phased approach keeps total downtime to a single 8-hour planned window, instead of multiple unplanned outages.

Step 1: Replace the intake valve assembly and all valve seals first. This addresses 70% of unstable output cases in properly set up units, per 2023 Compressed Air & Gas Institute data.

Step 2: Test output for 2 hours after reassembly. If variance drops below 5%, stop here. No need to replace additional components.

You don’t have to replace the entire compression module.

Step 3: If variance still exceeds 10%, replace the aftercooler core. Corrosion and internal leaks here are the second most common root cause. Schedule this replacement for the next planned shutdown, not an emergency outage.

Rollback Plan For Unexpected Issues

No upgrade goes perfectly every time. A simple rollback keeps you operational if the new component doesn’t resolve the issue or doesn’t fit correctly.

First, keep the old valve assembly on site during the upgrade, as long as it’s not completely destroyed. If the new valve leaks or causes higher variance, you can reinstall the old assembly and go back to your temporary transition solution while you source a correct replacement part.

Second, mark all air line connections before disassembly to avoid misalignment during reassembly. Misalignment is the most common avoidable issue during component swap.

Never discard old components until you’ve logged 48 hours of stable output after the upgrade.
