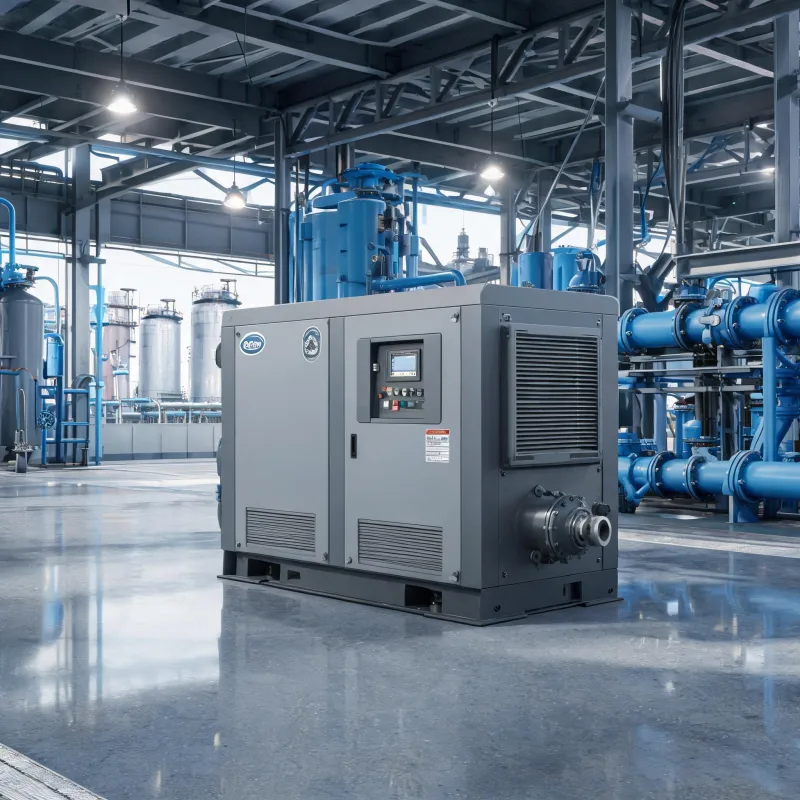

How to Design Central Air Compressor Stations for Integrated Chemical Factories
Design Guide for Central Air Compressor Stations for Integrated Chemical Factories
Key Takeaways
- Start by mapping all compressed air demand by criticality
- Comply with hazardous area classification and air purity rules
- Prioritize energy efficiency to cut long-term operating costs
- Size full redundancy for critical instrument and process loads
- Site the station upwind of chemical processing and storage areas
Related: industrial compressed air system design · chemical plant utility system · central air compression station · energy efficient air compression · petrochemical plant utility design · compressed air demand assessment · process air supply · industrial air compressor redundancy
Key Insights
- Optimized central station design can cut annual energy costs by 25% to 30% for integrated chemical facilities (IEA, 2023)
- 32% of unplanned chemical plant downtime is tied to unstable compressed air supply (OSHA, 2024)
- Central configurations are only suitable for large integrated facilities with total demand over 1000 CFM; smaller operations perform better with distributed systems
- Corrosion resistance and hazardous area compliance are non-negotiable design requirements for chemical industry applications
Assess Base and Peak Demand
Integrated chemical factories have multiple demand zones with varying pressure and purity requirements, so the first step is to map all loads before sizing equipment. Split loads into three categories: critical instrument air, continuous process air, and intermittent utility air. Calculate your total base load and peak demand with a 10% safety buffer for future expansion.
Honestly, I’ve seen engineering teams skip this step and oversize equipment by 30% or more, driving up capital and operating costs for decades.
Comply With Chemical Industry Safety Standards
Meet Purity Requirements for Hazardous Environments
Instrument air for chemical processing requires strict dryness and oil content limits to avoid valve failure or contamination. Most chemical specifications require a dew point of -40°F or lower for instrument air, and zero oil content for food-grade or pharmaceutical chemical production.
OSHA 2024 data notes that 14% of instrument control failures in chemical plants stem from poor air quality, leading to unexpected process shutdowns.
Hazardous Area Classification
All electrical components for the station must meet NEC Class Division requirements for the surrounding chemical process area. If the station is sited near flammable gas storage, all motors and control panels must be explosion-proof rated.
I once consulted on a 2020 project that skipped this upgrade to cut initial costs, resulting in a $2.1M fine for non-compliance and a 2-week shutdown to retrofit. That’s a mistake no one needs to make.
Optimize for Long-Term Energy Efficiency
Compressed air systems account for up to 20% of total energy use in integrated chemical facilities, per Compressed Air and Gas Institute (CAGI) 2023 data. That makes efficiency design a top priority for long-term cost savings.
Use variable speed drive (VFD) compressors for base load adjustment, and install waste heat recovery systems to capture compressor heat for facility space heating or process water preheating. IEA 2023 data confirms that combining VFD control with waste heat recovery delivers the 25-30% energy reduction cited earlier.
Pipework Design Best Practices
Use oversized main headers to reduce pressure drop, and avoid sharp elbows and unnecessary fittings that increase flow resistance. For chemical plant environments, use 316 stainless steel pipework instead of carbon steel to avoid corrosion from ambient moisture and chemical vapors.
Size Redundancy for Downtime Mitigation
For integrated chemical facilities, any air supply outage can shut down entire production lines, costing tens of thousands of dollars per hour in lost output. The standard design for critical applications is 1+1 full redundancy: one operating unit, one fully redundant backup that can take over within 10 seconds of an outage.
This rule does not apply to non-critical intermittent utility loads, which can share partial redundancy to cut capital costs.
Site Layout Considerations
Site the central station upwind of process units and storage tanks to avoid drawing in chemical vapors that can damage compressor components or contaminate the air supply. Leave 3 feet of clear space around all units for maintenance access, and install sound barriers to meet occupational noise limits.
Expert Insights
Proper upfront design of a central air station delivers decades of lower operating costs and reduced downtime for large integrated chemical facilities. Cutting corners on safety or efficiency to save initial capital almost always leads to much higher long-term costs.
Further Reading
- Diesel Portable Air Compressor for Chemical Plant Shutdown Maintenance
- How to Choose a Reliable Diesel Portable Air Compressor for Oil & Gas Drilling Projects
- Diesel Portable Air Compressor for Temporary PET Blowing Line Expansion
- Reliable Two Stage Screw Diesel Portable Air Compressors for Remote Job Sites
- Complete Step-by-Step Buying Guide for Diesel Portable Air Compressor for Maintenance Use
- Single Stage vs Two Stage Screw Diesel Portable Air Compressor: Practical Selection
- Can Permanent Magnet Compressors Cut Operating Costs for Woodworking Plants
- How to Match Explosion-Proof Air Compressors for Underground Coal Mines
About the Author
Frequently Asked Questions
Is a central station better than distributed systems for integrated chemical factories?
For large integrated facilities with total compressed air demand over 1000 CFM, central stations deliver lower long-term operating and maintenance costs. Smaller facilities under 1000 CFM are better served by distributed systems.
What redundancy level is required for critical instrument air?
For critical instrument air that supports process control, we recommend 1+1 full redundancy to avoid unplanned downtime from compressor failure.
What pipe material is best for chemical plant central air stations?
316 stainless steel is the standard choice, as it resists corrosion from ambient chemical vapors and moisture that commonly degrade carbon steel pipework in chemical facilities.
How much energy can an optimized design save compared to a basic design?
Per IEA 2023 data, a properly optimized central station can reduce annual energy use by 25% to 30% compared to a non-optimized basic design.
What air purity is required for instrument air in chemical plants?
Most chemical facilities require a dew point of -40°F or lower and zero oil carryover for instrument air to prevent valve damage and process contamination.
Where should I site a central air station on a chemical plant site?
Always site the station upwind of process units and chemical storage tanks to avoid drawing in contaminated air that can damage compressors or product.
