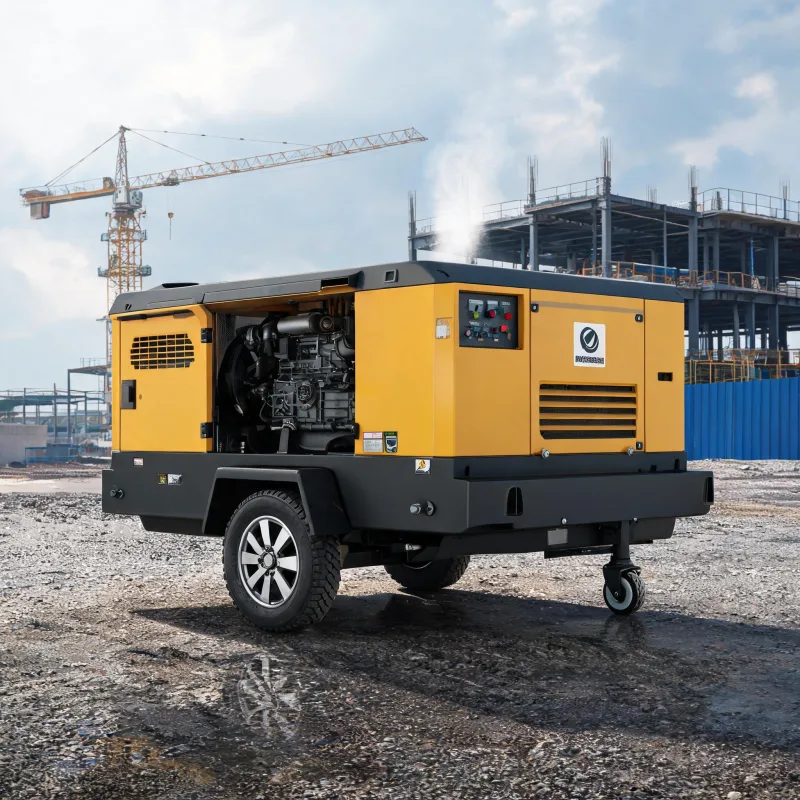

Common Mistakes That Throw Off CFM Calculations For Diesel Air Compressors
Most CFM calculation mistakes stem from ignoring real on-site conditions, leading to poor performance or higher costs.
Key Takeaways
- Altitude correction is required for any site over 2,000 feet elevation
- Don’t add all tool CFM demands directly; account for simultaneous use
- Factory listed free air delivery is not the same as usable CFM
- Unaccounted pressure drop cuts available CFM by 5-15% in most systems
Related: calculate air flow · correct CFM sizing · avoid sizing errors · output calculation · fuel consumption impact · required air flow
Why does ignoring altitude ruin my CFM calculation?
Most factory CFM ratings are tested at sea level, where air density is highest. Higher elevation lowers air density, so the same engine moves less actual air volume.
The Compressed Air and Gas Institute (CAGI) 2022 sizing guidelines note that CFM output drops 3-4% for every 1000 feet of elevation gain. At 5000 feet, that adds up to a 15-20% output drop from the stated rating.
Do you see tools sputtering even when your rating should cover demand? Altitude correction is almost always the missing step.
Why does a static full-load assumption give wrong CFM numbers?
Many calculators tell you to add up the CFM demand of every tool you’ll connect, and use that total for your sizing. That’s wrong.
Very few job sites run every tool at 100% full load at the exact same time. A diversity factor (simultaneous use factor) accounts for this variation. Most job sites only need 60-80% of the total summed CFM.
I’ve seen teams oversize by 40% just from skipping this step. That leaves you paying more upfront and burning more fuel than you need to, for capacity you’ll never use.
What happens when I confuse free air delivery with usable CFM?
Factory spec sheets list free air delivery (FAD) as their primary flow number. FAD is measured at the compressor inlet, at ambient conditions. It does not reflect the actual usable flow at your tool end.
Atlas Copco’s 2023 public sizing guide notes this mistake accounts for nearly 30% of all field sizing errors. Hoses, filters, connectors and fittings all create pressure loss that cuts into usable flow.
You need to subtract 5-15% from FAD to get actual usable CFM.
Can unaccounted pressure drop really change my final CFM calculation?
Most calculators ignore system pressure drop, assuming all flow goes directly to the tool without losses. That’s only true for very short hose runs.
OSHA’s 2021 compressed air system guidelines list uncalculated pressure drop as one of the top hidden causes of efficiency loss. Every 1 PSI of pressure drop cuts available CFM by roughly 1%. For a 100 PSI system with 10 PSI of unaccounted loss, that’s a 10% drop in usable flow.
If you’re running less than 50 feet of hose, this error is negligible. For longer runs or multiple connections, it can add up to a huge gap between your calculation and real performance.
You can spot bad calculations with simple on-site checks. If your unit runs constantly at higher than rated outlet temperature, you likely undersized. If fuel consumption is consistently 20% higher than quoted, you almost certainly oversized.
Use Cases
- High elevation work sites
- Multi-tool job sites
- Long run air distribution systems
- High pressure tool operations
Pitfalls to Avoid
- Never use factory sea level ratings unadjusted for high elevation sites
- Never skip adding an allowance for pressure drop in hoses and filters
- Never assume all connected tools will run at full load at the same time
- Never confuse free air delivery with usable CFM at the tool end
Further Reading
- How to Accurately Calculate Required CFM for Diesel Air Compressors for Industrial Sites
- Small vs Large Diesel Portable Air Compressor for Textile Mill Sizing Decisions
- Diesel Portable Air Compressor Solutions for Remote Off-Grid Air Supply
- Diesel Portable Air Compressor CFM Needs for Road Construction Job Sites
- How to Calculate the Right CFM Size for Heavy Industrial Diesel Air Compressors
- Higher CFM Ratings Trend for Modern Diesel Portable Air Compressors in Field Operations
- Low Noise 185 CFM Diesel Portable Air Compressor for Sandblasting Rust Removal
- Properly Sizing Diesel Portable Air Compressor for Remote Construction Factory Work Sites
About the Editorial Team
Frequently Asked Questions
What altitude do I need to correct my CFM calculation for?
Start correcting for altitude any time your work site sits above 2,000 feet above sea level.
How do I account for multiple tools running at once?
Multiply the total CFM of all connected tools by a diversity factor of 0.6 to 0.8, based on how often they run simultaneously.
Is free air delivery the same as usable CFM at the tool?
No. Free air delivery is measured at the compressor inlet. Subtract 5 to 15% for system losses to get usable CFM.
How do I check if my CFM calculation was wrong?
Watch for consistent tool underperformance, higher than expected fuel use, or constant high outlet temperature. These are clear red flags.
Do I need to adjust CFM for system pressure changes?
Yes. Higher required working pressure reduces the actual volume of air available, so always adjust your calculation to match your needs.
