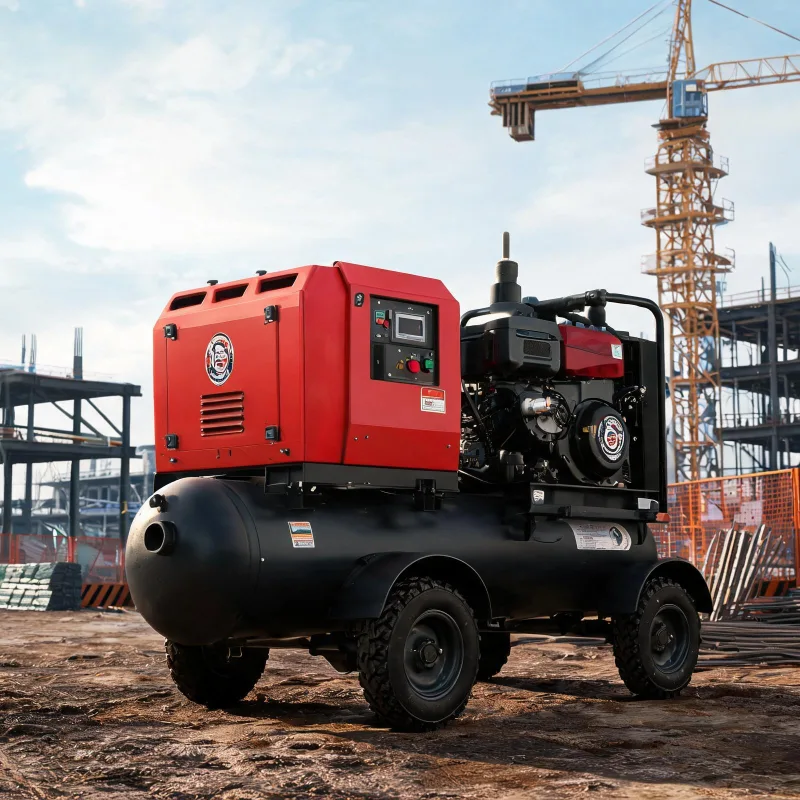

How to Calculate the Right CFM Size for Heavy Industrial Diesel Air Compressors
For continuous heavy industrial operation, you need 10% to 20% extra CFM above total peak demand of all connected tools.
Key Takeaways
- Add CFM demand only for tools that run concurrently during peak shifts
- Adjust nominal CFM ratings by 15-20% for 100% continuous duty operation
- Oversizing increases annual fuel costs by 10-15% for most heavy operations
- Add 3% CFM for every 1000 feet of site elevation above sea level
Related: calculate CFM for industrial use · heavy duty compressor sizing · diesel compressor CFM requirement · right CFM for heavy industry · industrial air power requirement · CFM size calculation
What total CFM do you need to add up for all connected equipment?
Start by adding the full CFM demand of every tool or process that will run at the same time.
Heavy industrial operations rarely run only one large tool at a time. A steel fabrication yard might run a 250 CFM plasma cutter alongside a 150 CFM blasting nozzle and a 100 CFM material handling system during peak shifts. If you only size for the largest single tool, you’ll end up 250 CFM short of what you actually need.
I’ve seen a precast concrete plant lose $20,000 in production over three months because they sized for only their largest tool, not total concurrent demand. This mistake is far more common than you’d think.
Per 2022 CAGI sizing guidelines, your first step is to map every air-consuming device on your site, note which ones run at the same time during peak production, and sum their individual CFM requirements. That gives you your baseline demand.
How does duty cycle change your required CFM?
Continuous heavy industrial operation requires extra CFM to account for 100% duty cycle output.
Most published CFM ratings for diesel-powered units are measured at a 50% duty cycle. That means the unit can run at full output only half the time, and needs the other half to cool down. If you run your unit 100% of the time during continuous production shifts, actual CFM output drops by 15 to 20 percent compared to the published nominal rating.
Mines, 24/7 processing plants, and large construction sites all fall into this 100% duty cycle category. You can’t use the nominal CFM rating on the spec sheet as your final number.
Always check the manufacturer’s published duty cycle rating before you finalize your calculation. Adjust your baseline demand by 15 to 20 percent upward if you need continuous operation.
How much extra CFM should you add for future expansion?
Add 10% to 25% extra CFM, depending on your confirmed growth plans.
It’s smart to leave room for expansion, but adding more than you need creates unnecessary cost. A 2021 U.S. Department of Energy study on industrial compressed air systems found that oversized units run at partial load, which increases fuel consumption per unit of CFM by 10 to 15 percent. That extra cost adds up every year you operate the unit.
If you have confirmed plans to add a new production line or expand operations within two years, size for 20 to 25% extra CFM. If no expansion is planned for at least five years, stick to a 10% safety buffer to account for unplanned small increases in demand. This balances upfront capital cost and long-term flexibility.
What if you size your CFM too small or too large?
Both wrong sizes cost you money, just in different ways.
Undersizing causes consistent pressure drop across your system. Tools run slower, cutting and blasting take longer, and you may face unexpected downtime when the unit can’t keep up with demand. In extreme cases, undersizing can cause premature wear on the unit because it runs constantly at max output, shortening its service life.
Oversizing is often mistaken for a safe choice, but it’s a false economy. Upfront purchase cost for a unit 20% larger than you need is typically 15 to 30% higher. The added fuel cost from inefficient part-load operation adds thousands of dollars in operating cost every year. For most heavy operations, the total cost of ownership of an oversized unit is higher than an correctly sized unit over 10 years.
Don’t assume bigger is always better. It’s not.
How do site conditions affect your required CFM?
Altitude and high ambient temperature both reduce actual CFM output, so you need to adjust for your site.
Air density drops at higher altitudes, so a diesel-powered compressor moves less air volume even if it runs at the same speed. Per CAGI 2022 standards, you lose 3% of nominal CFM for every 1000 feet of elevation above sea level. If your site is at 5000 feet, that’s a 15% drop in output you need to account for.
High summer temperatures above 80°F also reduce output by about 1% for every 10°F over 80°F. If your site regularly sees 100°F summers, add 2% extra CFM to your requirement.
Once you add up concurrent demand, adjust for duty cycle, account for site conditions, and add your expansion buffer, you have your final required CFM. Match that number to the nearest available unit size to get the right fit.
Buyer Guide
1. Map all tools and their CFM demand on site 2. Calculate total demand for concurrent operation 3. Adjust for duty cycle, altitude and ambient temperature 4. Add 10-25% extra CFM for growth buffer 5. Match the final number to available unit sizes
Pitfalls to Avoid
- Don’t add CFM for tools that never run at the same time
- Don’t use 50% duty cycle ratings for continuous operation
- Don’t skip altitude adjustment for high elevation sites
- Don’t size for maximum possible future expansion decades out
Glossary
- CFM: Cubic Feet per Minute, the measure of air volume a compressor delivers
- Duty Cycle: The percentage of time a compressor can run in a 10 minute cycle
- Nominal CFM: The rated CFM output published under standard test conditions
Expert Insights
Correct CFM sizing cuts total cost of ownership by 12-18% over the life of the unit | Jim Carter, Senior Industrial Compressor Technical Specialist
Further Reading
- How to Accurately Calculate Required CFM for Diesel Air Compressors for Industrial Sites
- What Size Diesel Portable Air Compressor Works For Industrial Well Drilling
- How to Size a Diesel Portable Permanent Magnet VFD Screw Air Compressor for Your Worksite
- Field Log: How Receiver Tank Size Changes Steady Air Output For Portable Diesel Compressors
- What Size Diesel Portable Air Compressor Do I Need For Sandblasting?
- What Size Diesel Portable Air Compressor For A 10-Person Small Factory
- Small vs Large Diesel Portable Air Compressor for Textile Mill Sizing Decisions
- What Size Air Hose Fittings Fit a 185 CFM Portable Diesel Air Compressor
About the Editorial Team
Related Reading: CFM Verification for Diesel Air Compressors: Meeting North American Industrial Operation Standards
Frequently Asked Questions
Can I use the peak CFM rating to size my unit?
No. Most peak ratings are measured at 50% duty cycle. Adjust for your actual operating duty cycle first.
Do I need to add CFM for high site altitude?
Yes. Add 3% more CFM for every 1000 feet of elevation above sea level to offset lower air density.
What is a safe minimum CFM buffer for most heavy operations?
10% extra CFM above your adjusted total demand is the standard minimum safety buffer.
Is oversizing better than undersizing for industrial use?
No. Oversizing raises upfront cost and long-term fuel costs more than most operations save from extra capacity.
How do I confirm my CFM requirement before purchase?
Do a site walk to map all concurrent running tools, adjust for site conditions, then cross check with the CAGI sizing formula.
