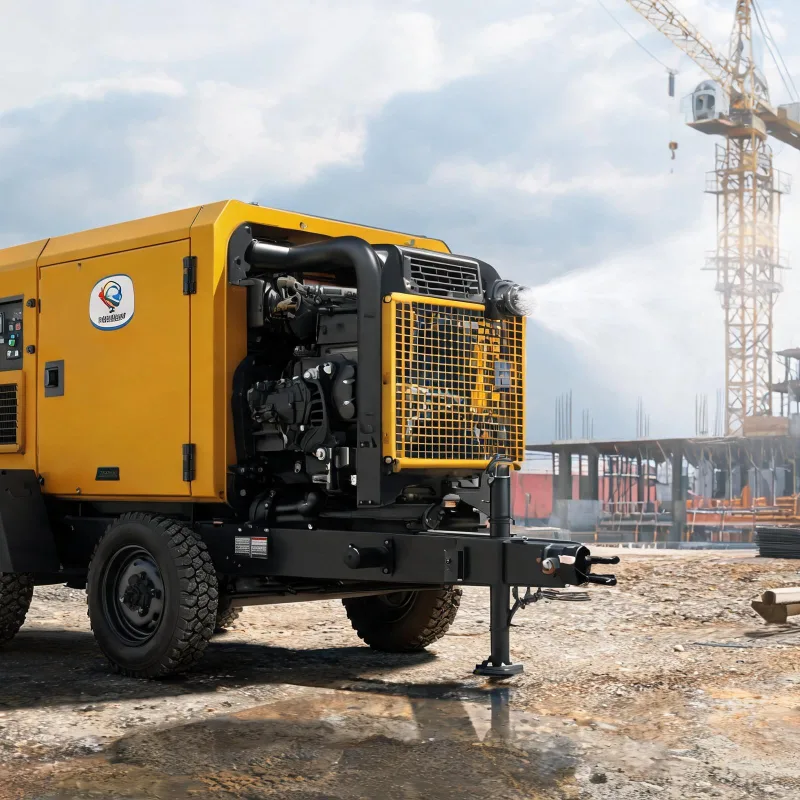

Calculating CFM and Pressure for Safe High-Load Continuous Diesel Compressor Operation

Correct CFM and pressure sizing is non-negotiable for safe continuous high-load operation.

Related: continuous operation sizing · safe compressor operation · overload compliance rules · CFM pressure calculation · on-site performance testing · failure prevention sizing

• Most mis-sized units fail within six months of continuous use.
• Sizing adjustments are required for high elevation and hot environments.
• A four hour full load test confirms safe operation before acceptance.
• Excess pressure raises fuel use and long term component wear.

Last summer we supported an open-pit site running 12-hour continuous shifts in 38C ambient heat, where a mis-sized unit failed after 72 hours of operation, triggering a full site shutdown. This is a common outcome when sizing ignores the unique constraints of high-load continuous operation.

Applicable Industry Standards

Two key sets of public standards define baseline requirements for this use case. The Compressed Air and Gas Institute (CAGI) 2021 performance testing guideline requires 10% extra CFM headroom for any continuous operation exceeding 8 hours per day. This headroom accounts for gradual component wear and fluctuating demand over long run times. ISO 1217:2020, the global standard for displacement compressors, sets a maximum 10% pressure drop allowance across all internal components during sustained full load. Any drop beyond this indicates internal leakage or mis-sizing that will trigger overload over time. All sizing calculations must also be adjusted for site conditions: reduce available CFM by 3% per 1000 feet of elevation, and 2% per 10C above 20C ambient temperature, to account for lower air density.

Common Non-Compliant Sizing Mistakes

Most non-compliant sizing comes from misreading manufacturer rating labels. The most common mistake is using the unit’s maximum output rating for continuous load planning. Maximum output is tested for short intermittent peaks, not sustained operation. Don’t rely on this number for 8+ hour continuous runs. A second common mistake is ignoring site elevation and temperature derating. A unit sized for sea level will deliver 15% less CFM at 5000 feet, which forces it to run at 115% load 24/7. Third, many operators set discharge pressure 10-15 psi higher than their process actually requires. Every extra 10 psi of pressure increases bearing load by 7% and fuel consumption by 5%, which cuts component lifespan by 30% or more in continuous use.

On-Site Control Measures

Even with correct sizing, continuous high-load operation requires active monitoring to stay compliant. Install a permanent pressure and flow monitor at the discharge header, and log readings every 15 minutes. Acceptable operation falls within 2% of target discharge pressure and 5% of calculated required CFM for any 4-hour consecutive window. Sustained deviation outside this range indicates overload that requires intervention. Monitor discharge and crankcase temperature continuously. If discharge temperature runs more than 10C above the manufacturer’s baseline for over an hour, shut down for inspection before resuming operation. I’ve seen sites skip basic temperature monitoring and end up with cracked cylinder heads after three months of continuous run time.

Documentation and Acceptance Checks

Compliance requires documented verification before the unit is accepted for permanent operation. First, obtain a formal sustained output rating sheet from the manufacturer, separate from the maximum output marketing materials. This document confirms the unit’s safe long-term load limit. Second, complete a 4-hour full-load on-site test before final acceptance. Record pressure, flow, temperature, and fuel consumption throughout the test to confirm all values fall within standard limits. OSHA 2022 general industry standards require this documented test for any compressor powering critical continuous process operations, to meet workplace safety requirements.

Exception Approval for Edge Cases

In some constrained sites, it may not be possible to meet the 10% CFM headroom requirement. Any exception must be approved via a formal written risk assessment, signed by the site HSE manager. The unit’s maximum continuous run time must be limited to 10 hours between 2-hour cool-down periods, and a fully functional standby unit must be on-site to take over if overload alarms trigger. No exception is allowed for 24/7 uninterrupted critical process operations. The risk of unplanned shutdown and safety failure is too high to cut corners on sizing here.
